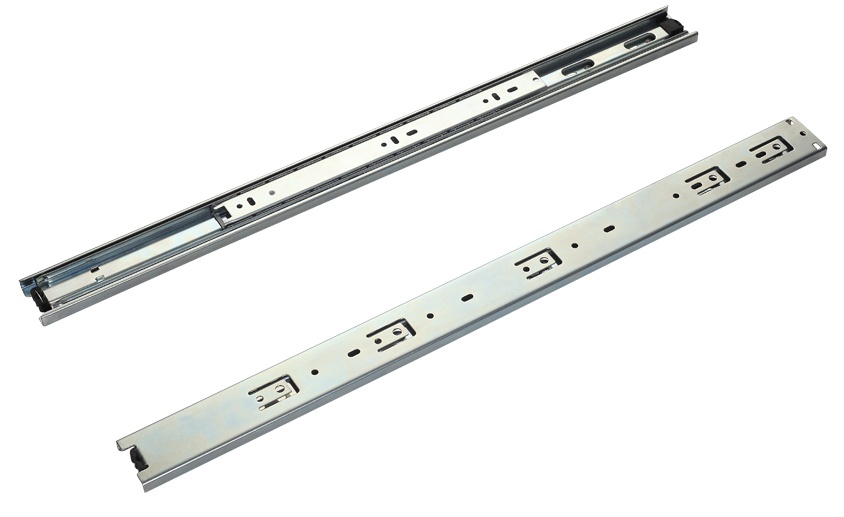

45mm Full-extension drawer slide

45mm Full-extension drawer slide
Product name : 45mm Full-extension drawer slide
Item : HW-4507
Details :

Mounting: Side/Under

Slide Height: 1.78"/45.3mm

Load Class: 100 lb./45kgs/18"

Finish: Clear zinc, white, or black E-coat

Material: Hardened cold rolled steel

Slide Width: 12.7+/-0.1mm

Size: 10" - 28"

Option: 1" over travel
